Product Details:
Payment & Shipping Terms:
|
| Measuring Range: | 30-300 Meters | Measure The Number Of Layers: | 12 |
|---|---|---|---|
| Wind Speed Accuracy: | 0.1m/s | Protection Class: | P65 (core Module) / IP54 (complete Machine) |
| Wind Direction Measurement Accuracy: | 1° | Wind Direction Measurement Range: | 0~360° |
| Weight: | <50kg | Range Of Working Temperature: | -40℃ ~ 50℃ |
| Operating Humidity Range: | 0% To 100% | Eye Safety: | Class 1M (EN60825-1) |
| High Light: | 270V AC Offshore Wind Lidar,90V AC Offshore Wind Lidar,Intertek 24V DC Wind Lidar |
||
Power Supply 24V±2% DC 90-270VAC Wind Lidar
1,Product introduction

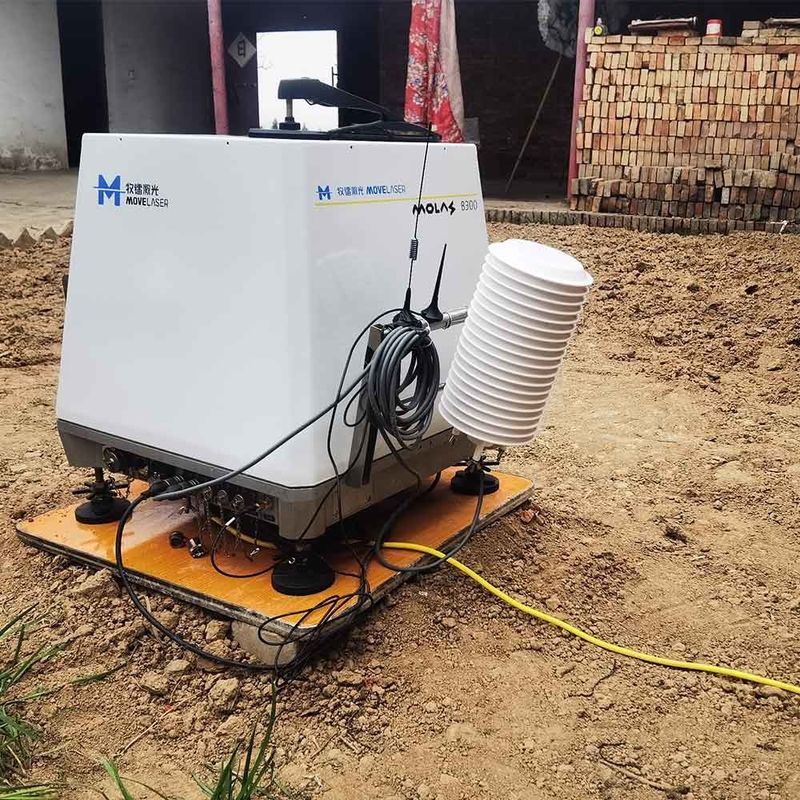

The laser light source of Molas B300/B300M wind lidar is in accordance with EN 60825-1 eye safety standards in the specification, the beam emitted by the Molas B300/B300M wind lidar is not visible to the naked eye, belong to Class 1M laser products, please do not use optical instrument to view directly.
The four core modules of Molas B300 series are independently designed from fiber laser radar transmitter, laser transceiver system, high-speed data acquisition system, and high-precision data processing software. Each core module has a high degree of matching, which ensures the unified coordination and Data and information security has reached the international advanced level.
2,Product parameters
| Powered by | 24V DC / 100~240V |
| Power | 70W |
| Size | 520*420*550mm |
| Weight | <50kg |
| Range of working temperature | -40℃ ~ 50℃ |
| Operating humidity range | 0% to 100% |
| Protection class | IP65 (core module) / IP54 (complete machine) |
| Eye safety | Class 1M (EN60825-1) |
| Measuring distance | 30~300m |
| Measurement layer | 12 |
| Sampling rate | 1Hz |
| Wind speed measurement accuracy | 0.1m/s |
| Wind direction measurement accuracy | 1° |
| Wind speed measurement range | 0~75m/s |
| Wind direction measurement range | 0~360° |
| Sweep cone angle | 28° |
3,Application field
Wind resource assessment / Micro site selection and review / Wind power prediction system
Wind farm / wind farm performance evaluation / Weather detection
